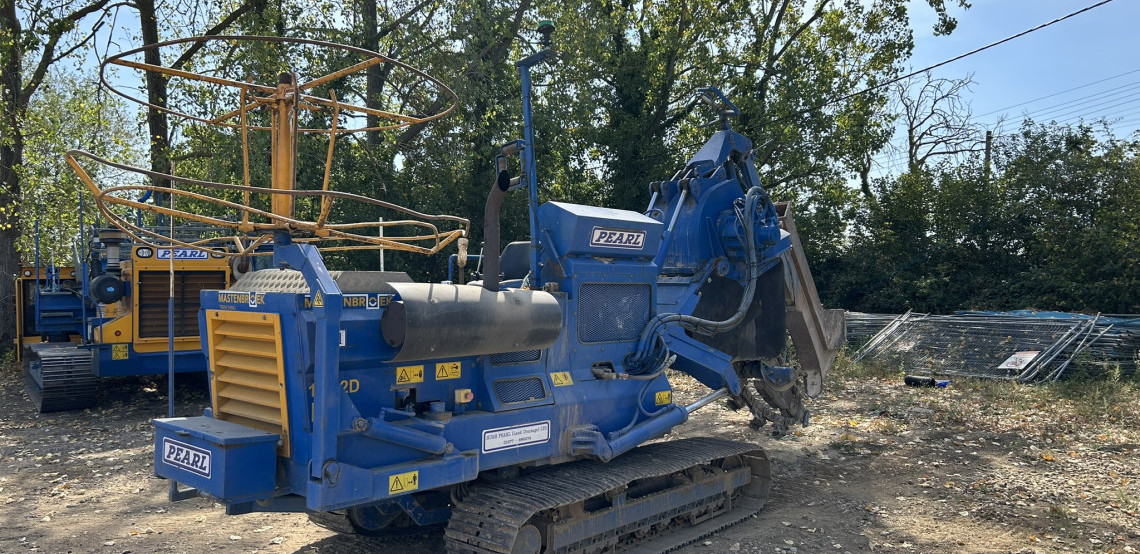

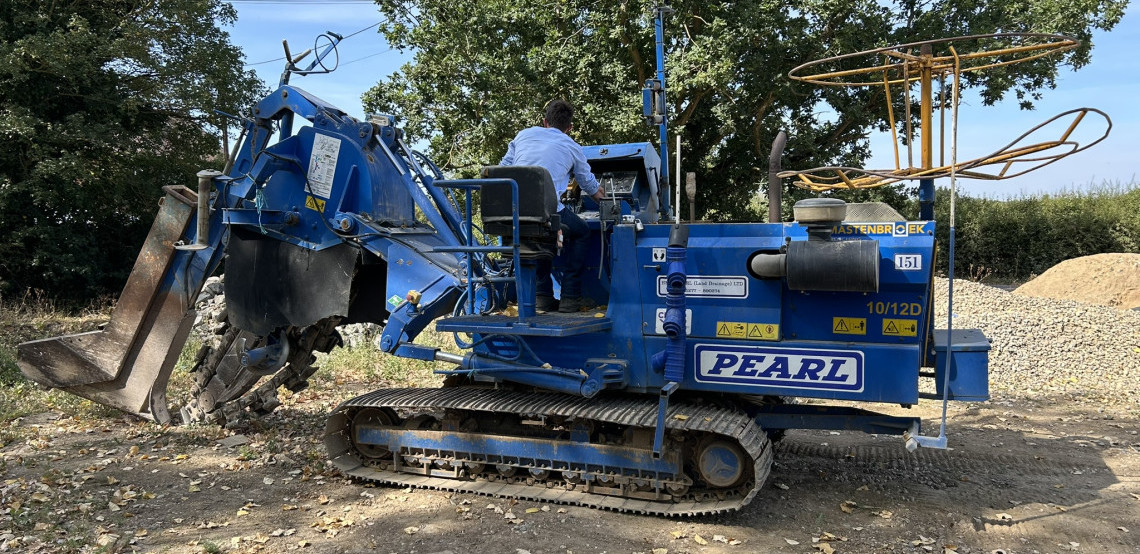

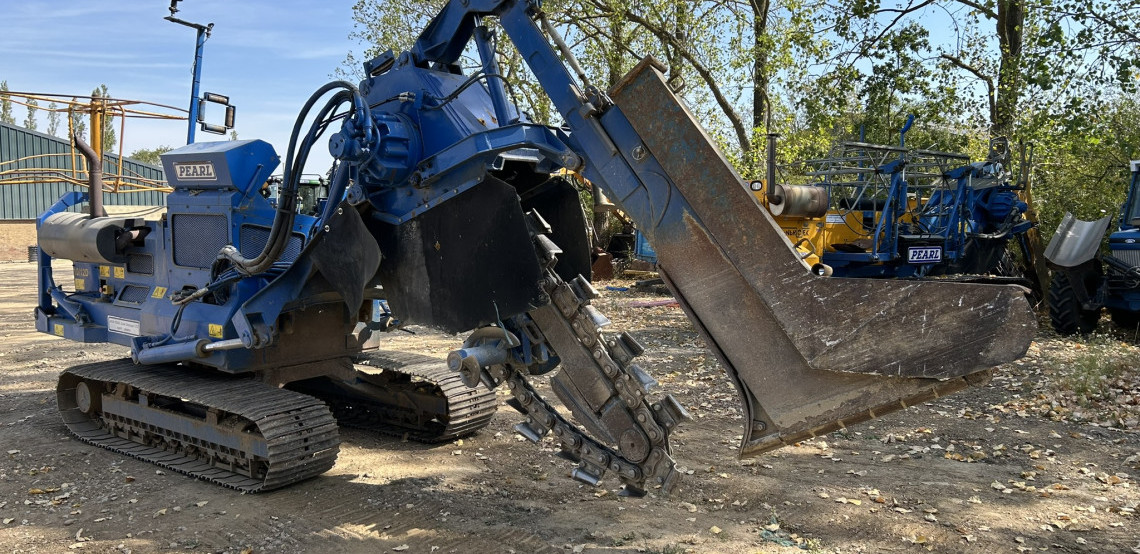

Mastenbroek 10/12D trencher

Machine Type -

 10/12D

Year of manufacture -

 2003

Registered hours -

 6277 approx

Machine condition -

 Ready to work

Machine location -

 UK

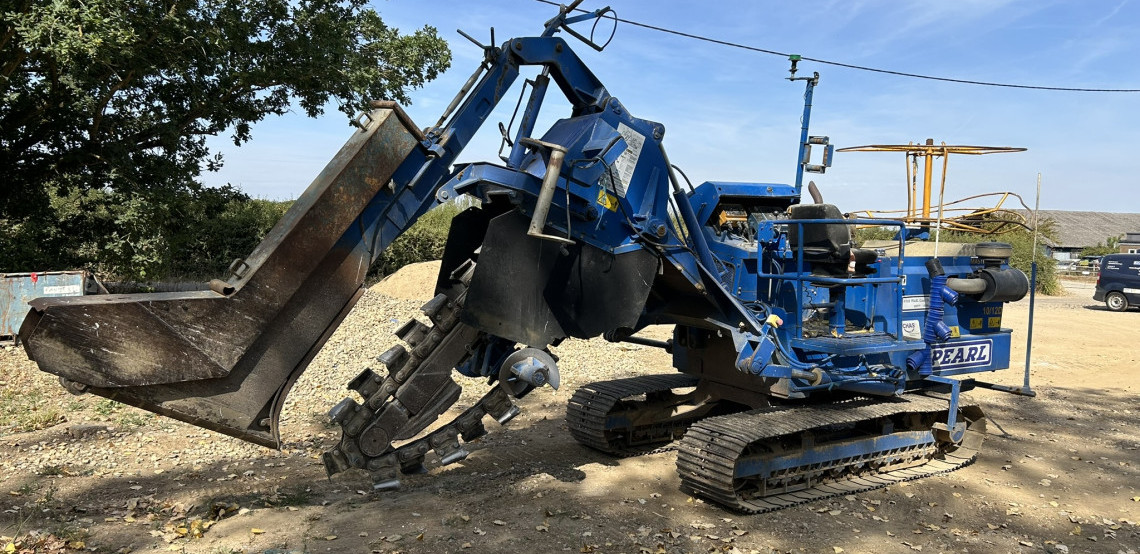

                        Trench unit:

Trenching depth -

 Minimum 0.25m – Maximum 1.4m

 Maximum 1.1m with sports field kit fitted

Grading range -

 1.15m

 0.85m with sports field kit fitted

Trenching width -

 Minimum 120mm – Maximum 370mm

Spoil displacement -

 Auger spoil discharge with manual variable height for use when   sports field kit is not fitted.

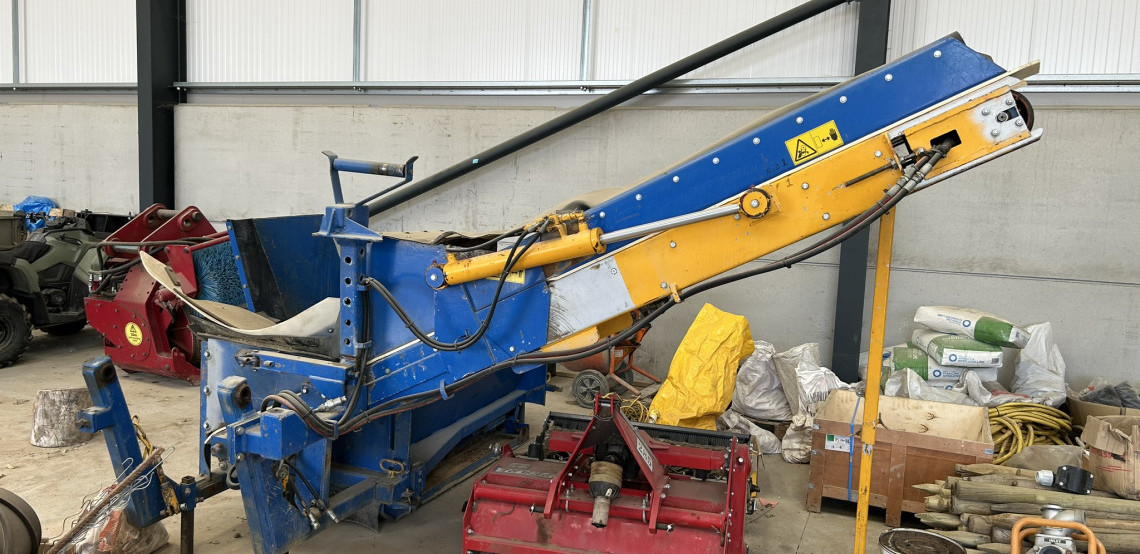

 With sports field kit fitted, spoil is discharged to the left-hand   side via hydraulic conveyor

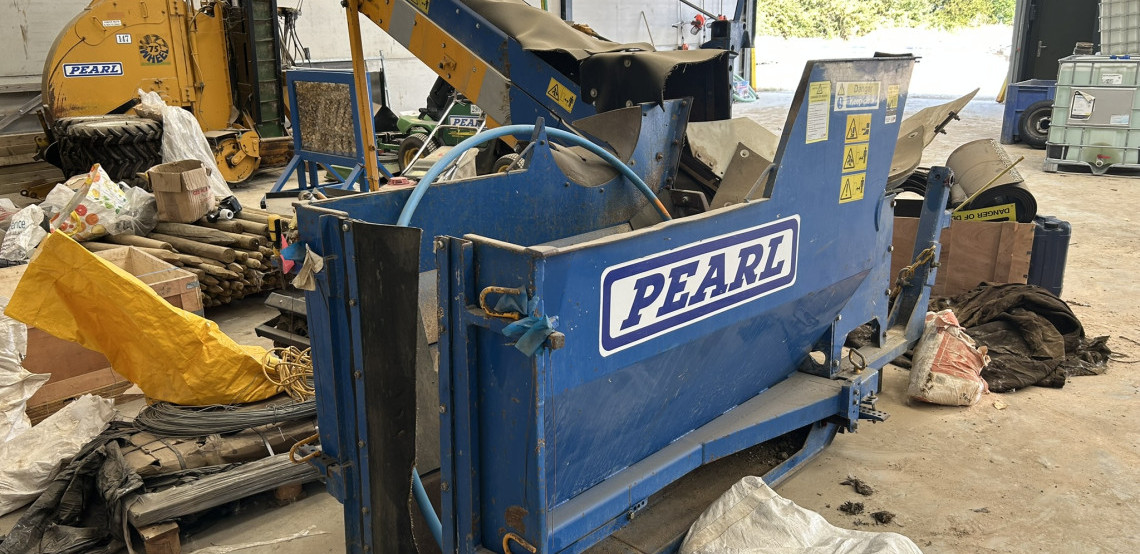

Pipe boxes -

 1 x pipe box 100mm inside

 1 x pipe box 180mm inside

                             Pipe reel:

Pipe reel type -

 1 x hydraulic pipe reel mounted on the front of the machine

                                 Engine:

Make -

 Cummins construction diesel engine

Type -

 B5.9E

Power -

 130hp (97kw)

Emission certified -

 EU stage 2

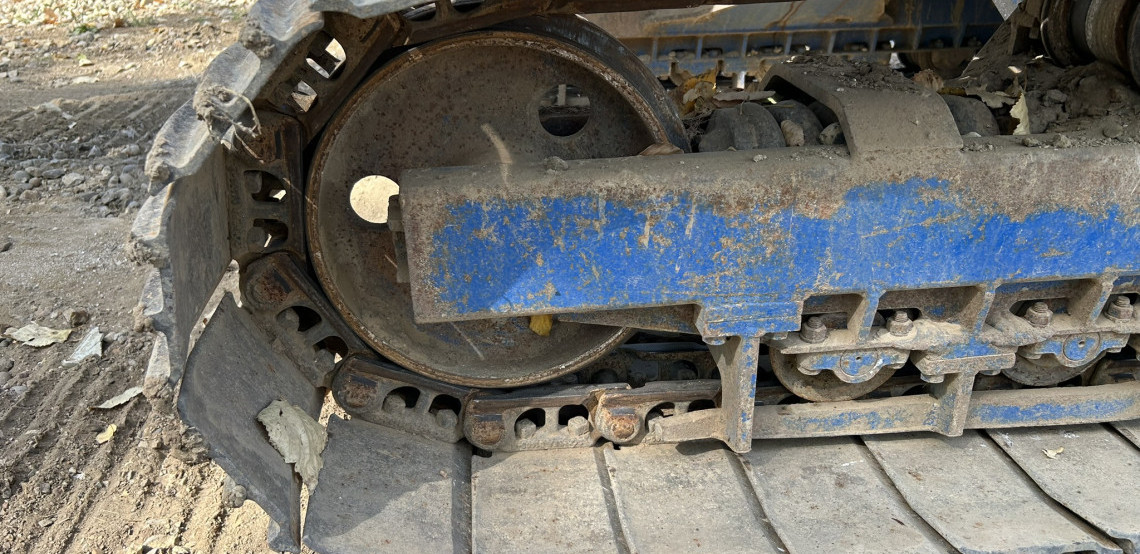

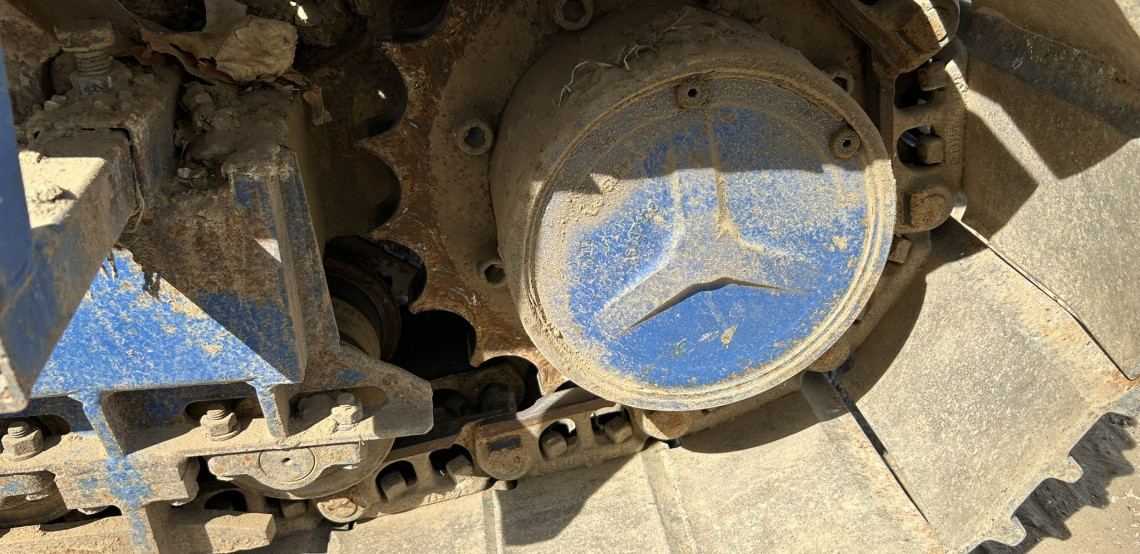

               Track assemblies:

Track type -

 Equivalent to Fiat 25

Track pad -

 Triple grouser 500mm winged edges

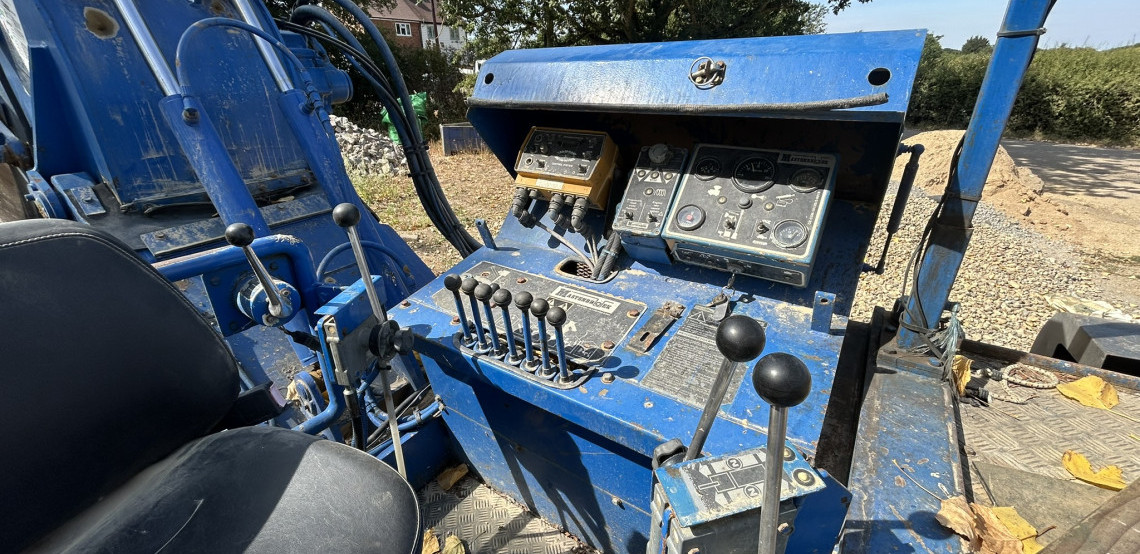

                Operators position:

Position type -

 Right hand side mounted with suspension seat

                Machine control:

Laser -

 Factory fitted wiring kit for laser

Dimensions and weight (approx. for transportation):

Weight -

 7,000kg

 7,750kg with sport field kit

Length -

 8.30m with pipe box and front pipe reel fitted

Width-

 1.9m over tracks

 2.0m with sports field kit fitted

Height-

 2.7m

 3.15m to top of conveyor when sports field kit fitted
