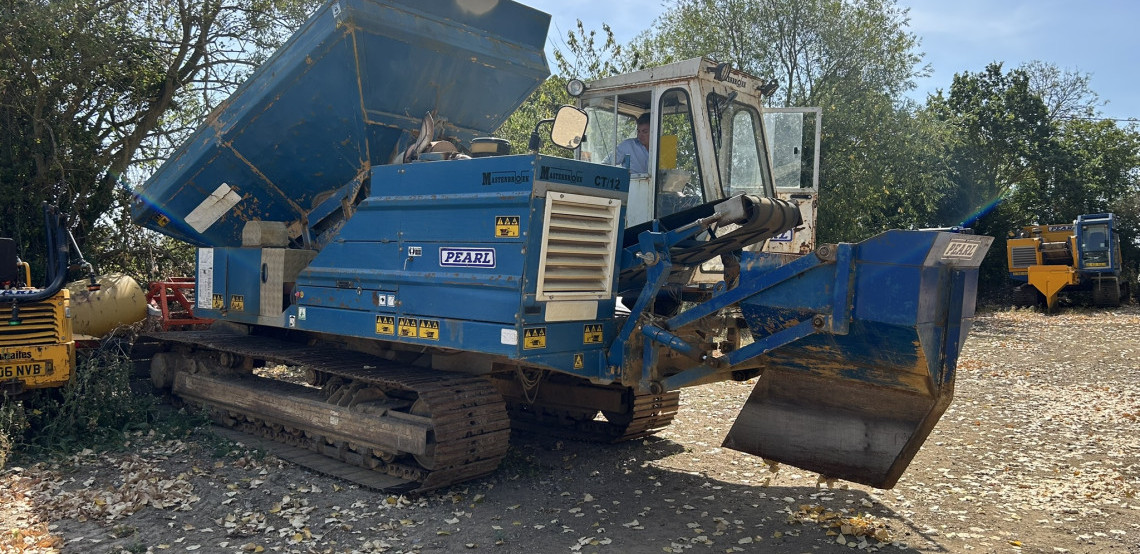

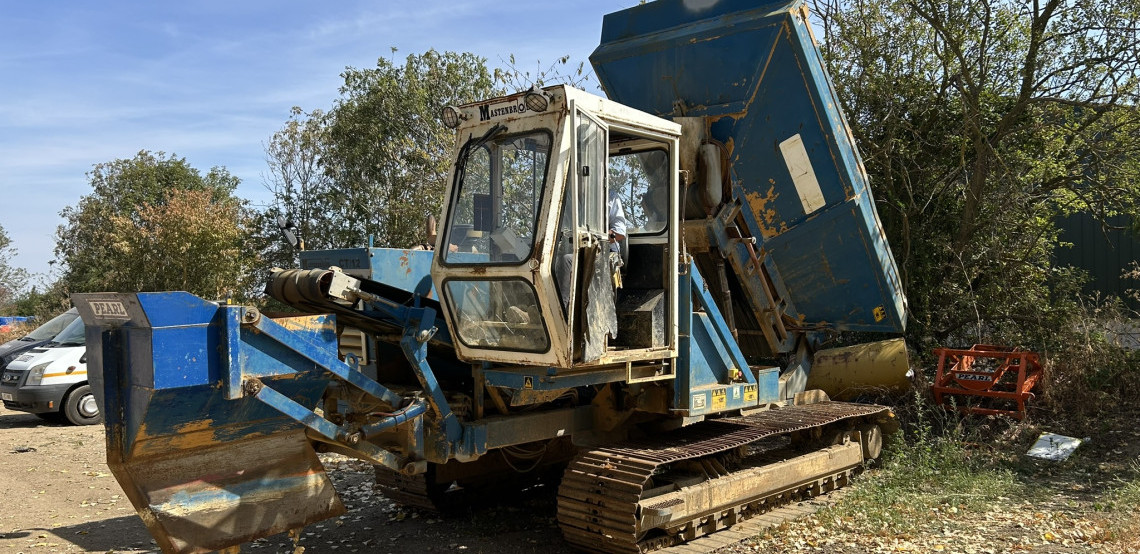

Mastenbroek CT12 Gravel cart

Machine Type -

CT/12

Year of manufacture -

2003

Registered hours -

4,105 approx

Machine condition -

Ready to work

Machine location -

UK

Hopper:

Hopper capacity -

Up to 15,000kg approx.

Hopper discharge -

1. Hopper conveyor discharge on to a centrally mounted forward conveyor and then either onto a front swing conveyor or into a front trench hopper.

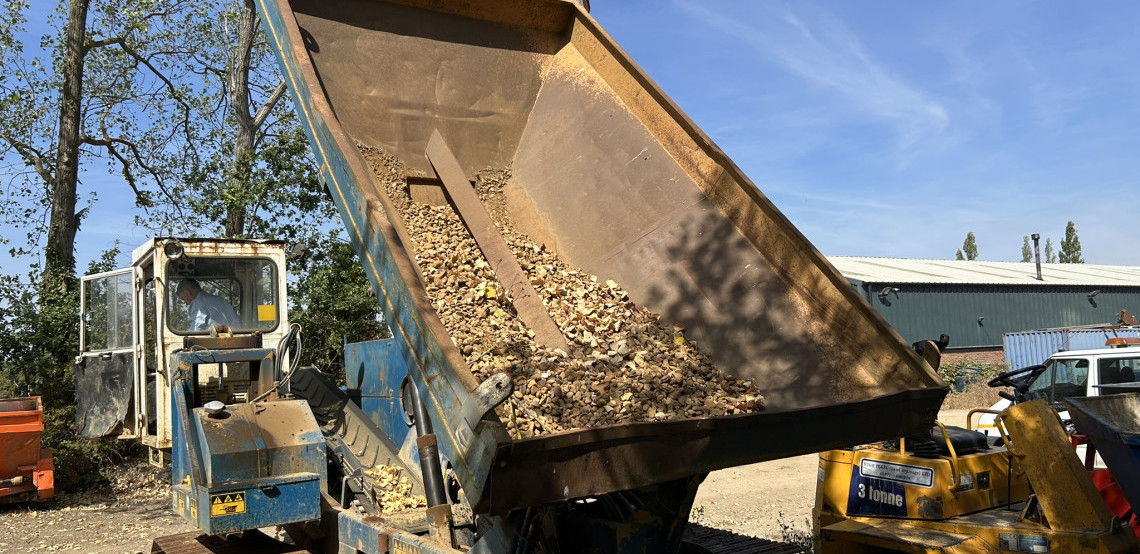

2. Hopper tipping facility to the rear of machine.

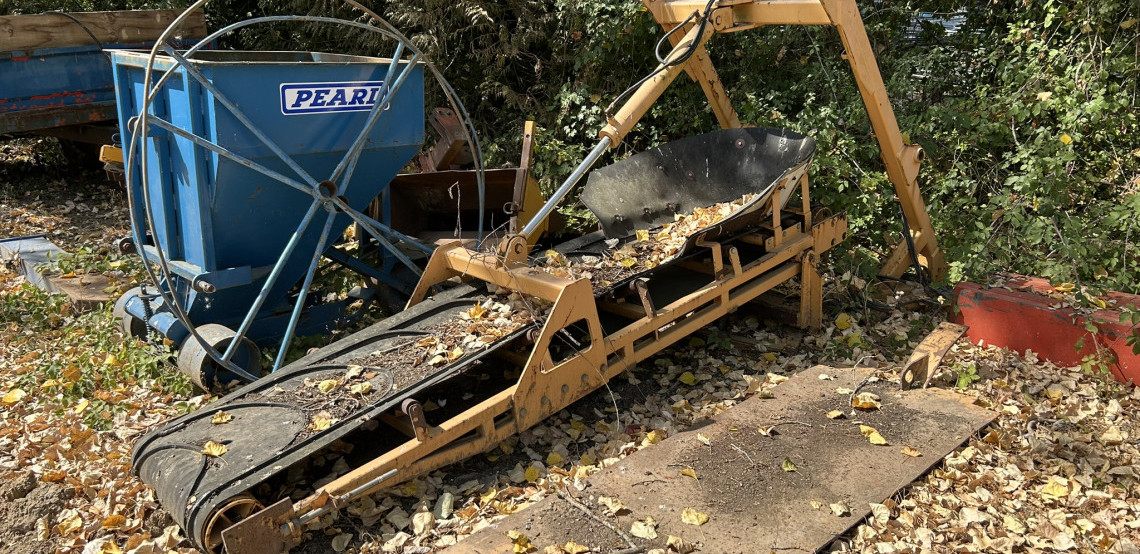

Swing conveyor -

180° swing.

Discharge height variable from 0.7m to 1.9m

Engine:

Make -

Cummins

Type -

QSB 5.9

Power -

215hp (157kw)

Emission certified -

EU stage 2

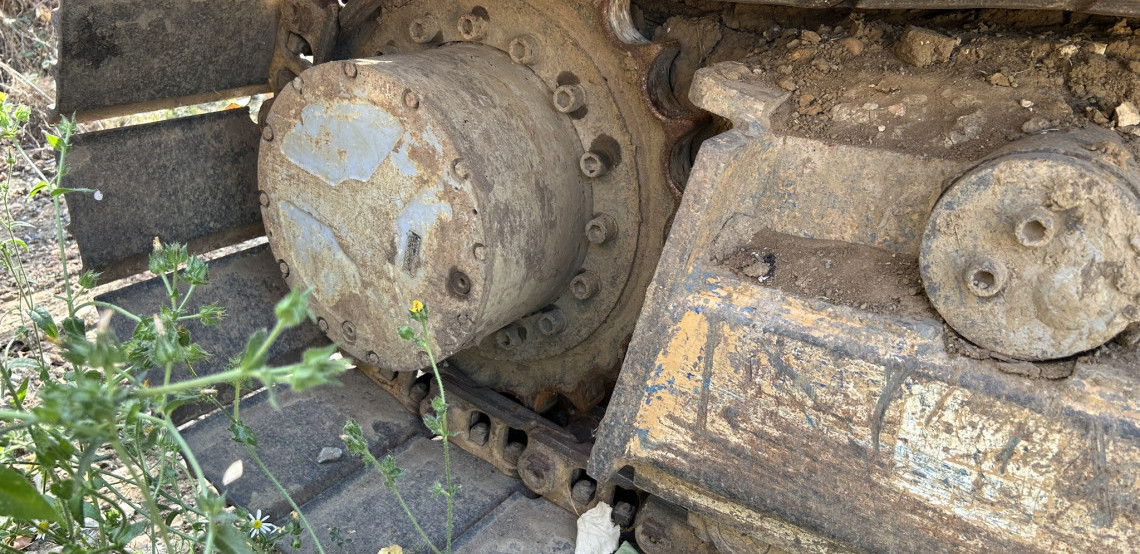

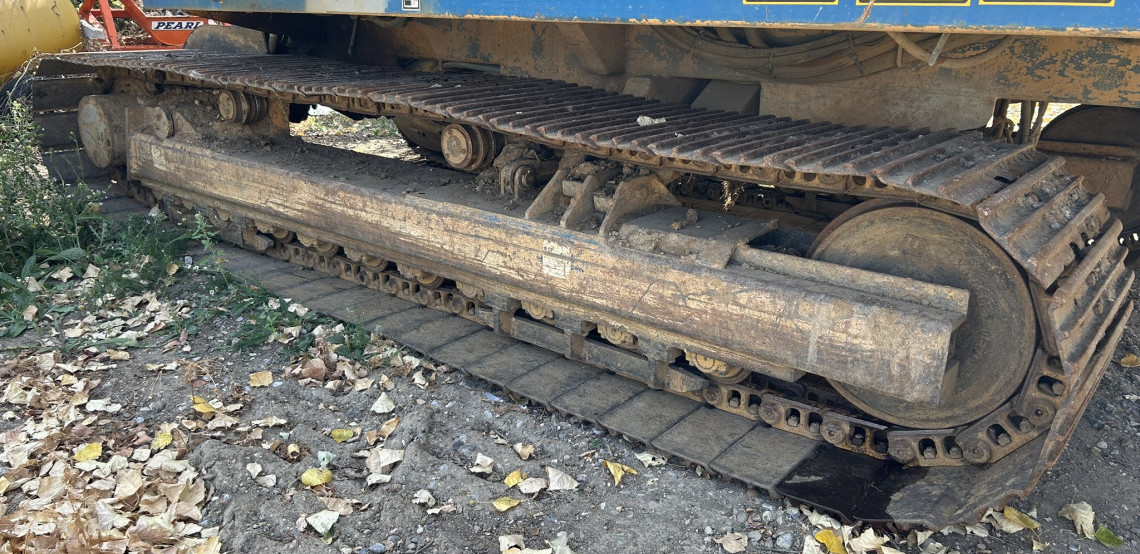

Track assemblies:

Track type -

Equivalent to D4

Track pad -

Triple grouser 700mm width

Operators cabin:

Model type -

Front mounted with heating

Movement -

Hydraulic rise and fall

Dimensions and weight (approx. for transportation):

Weight -

15.0 tonne approx

Length -

9.2m (with swing conveyor)

Width-

2.95m over tracks

Height-

2.95m
