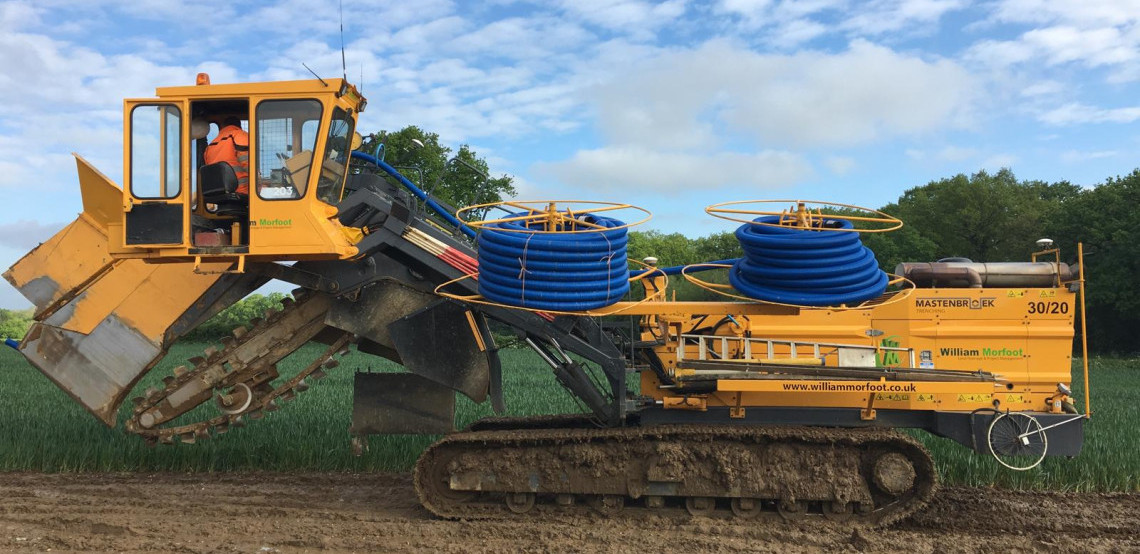

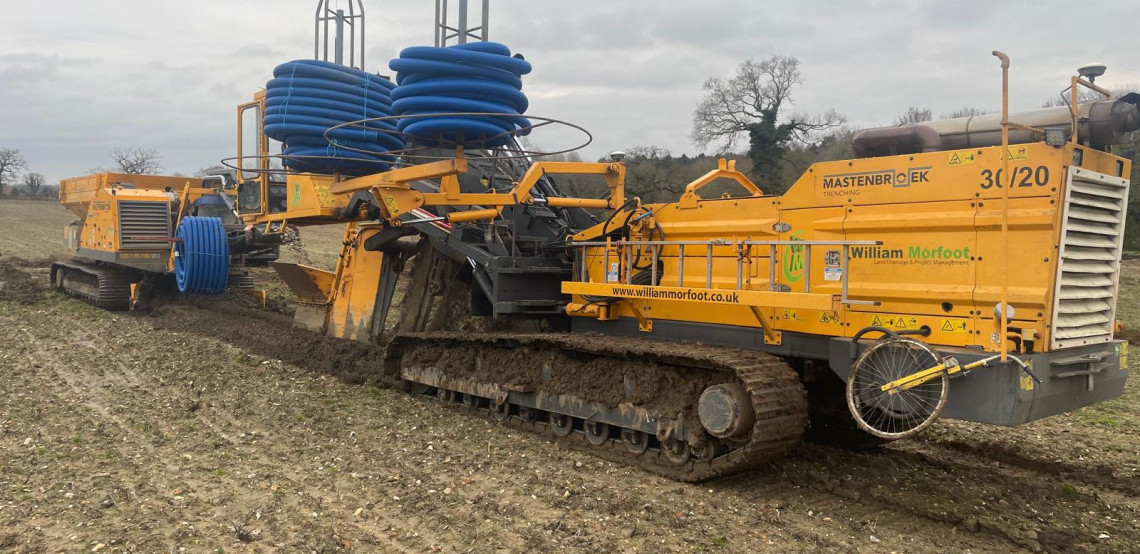

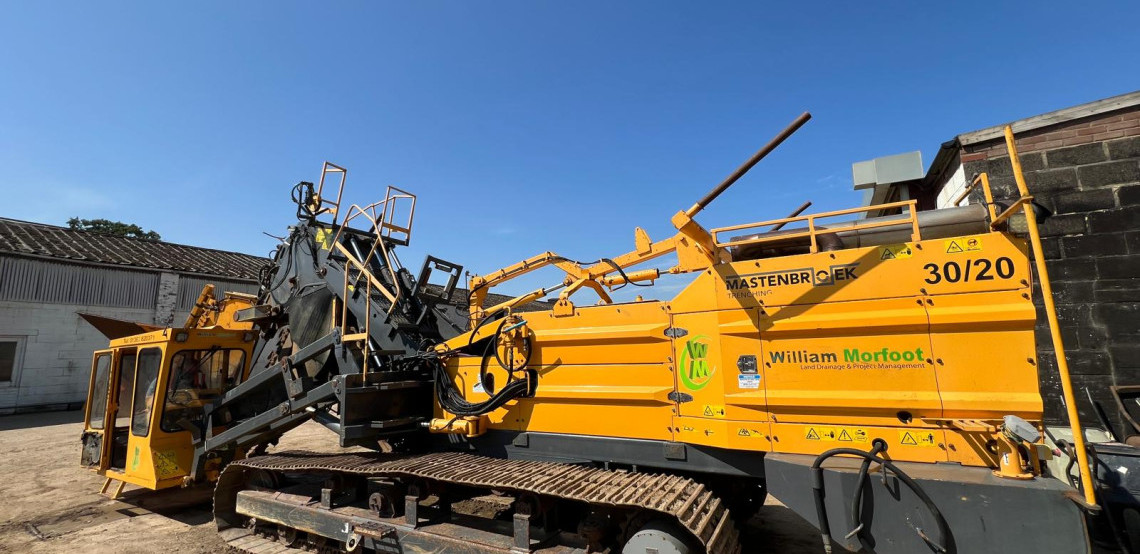

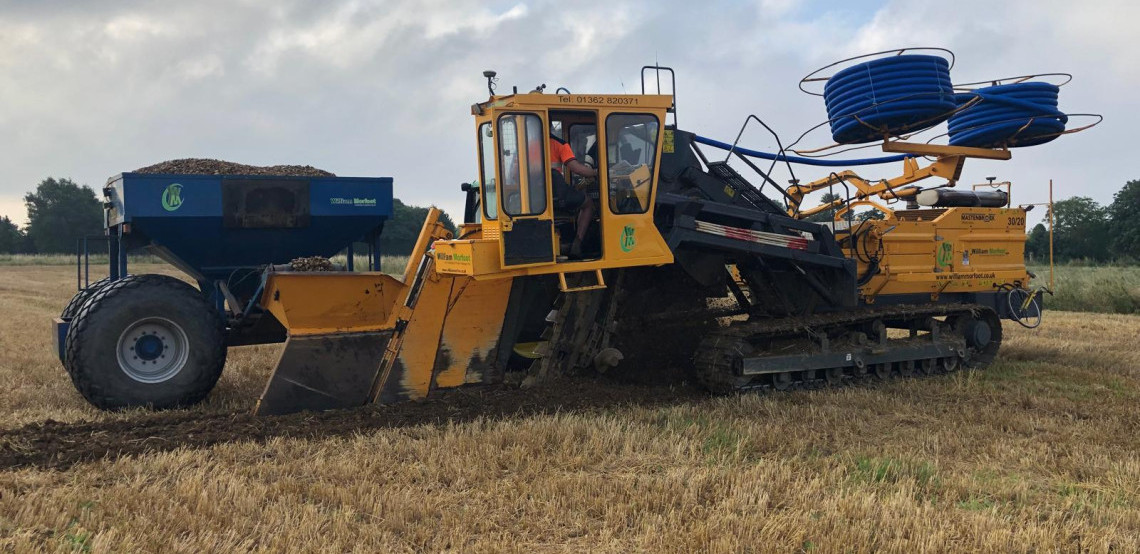

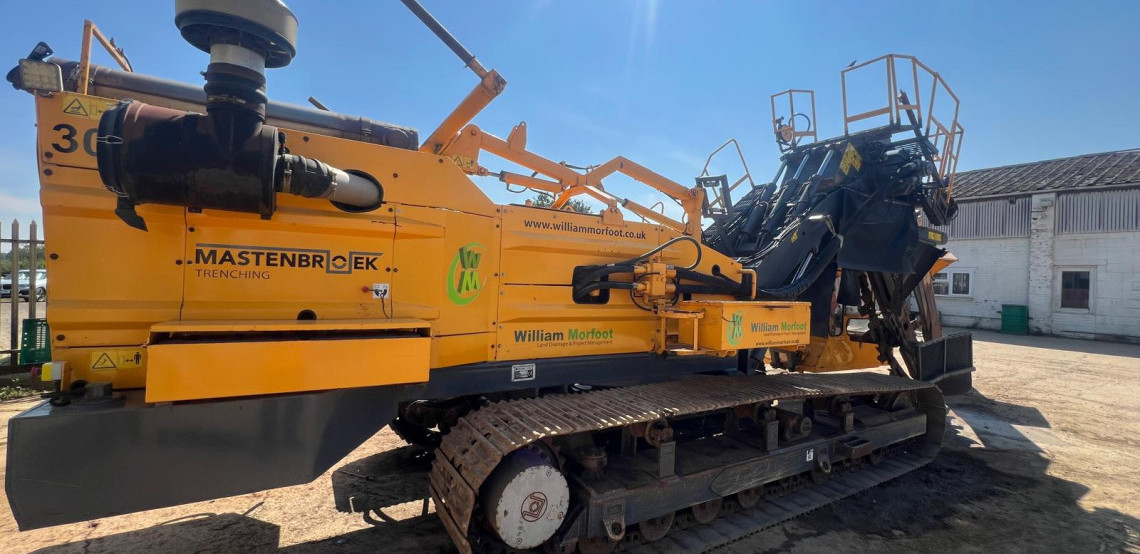

Mastenbroek 30/20 Drainage trencher

Overview

This 2007 30/20 Drainage trencher has just come onto the market. 12,500 registered hours its in ready to work condition.

Machine Type -	30/20
Year of manufacture -	2007
Registered hours -	12,500 approx
Machine condition -	Ready to work
Machine location -	Norfolk, UK

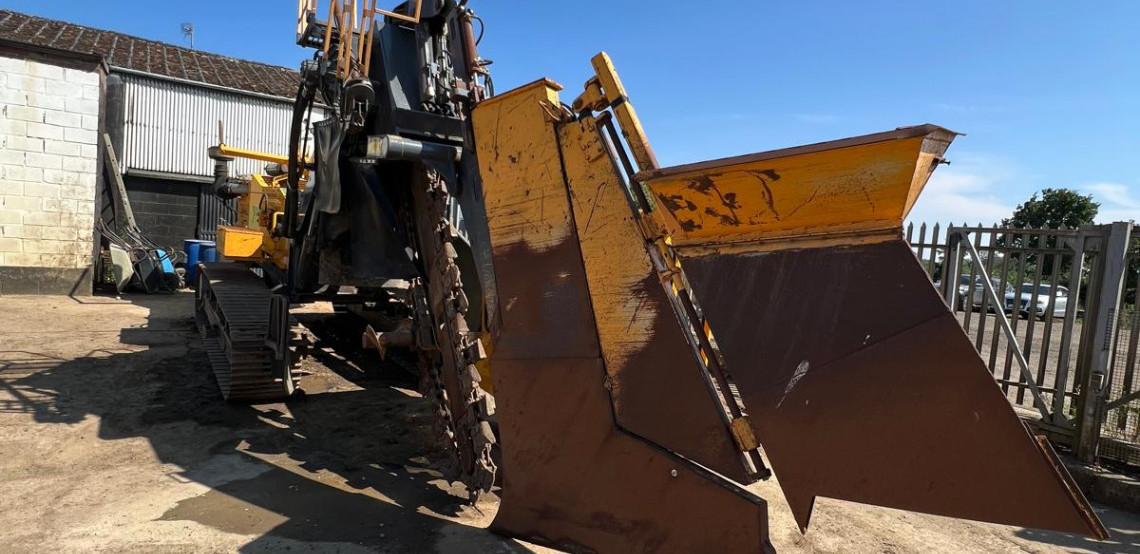

Trench unit:
Trenching depth -	Minimum 0.3m – Maximum 2.2m
Grading range -	1.9m
Trenching width -	Minimum 125mm – Maximum 380mm
Auger -	Auger spoil discharge with hydraulic variable height control
Pipe boxes -	1 x pipe box 100mm inside 1 x pipe box 120mm inside 1 x pipe box 180mm inside

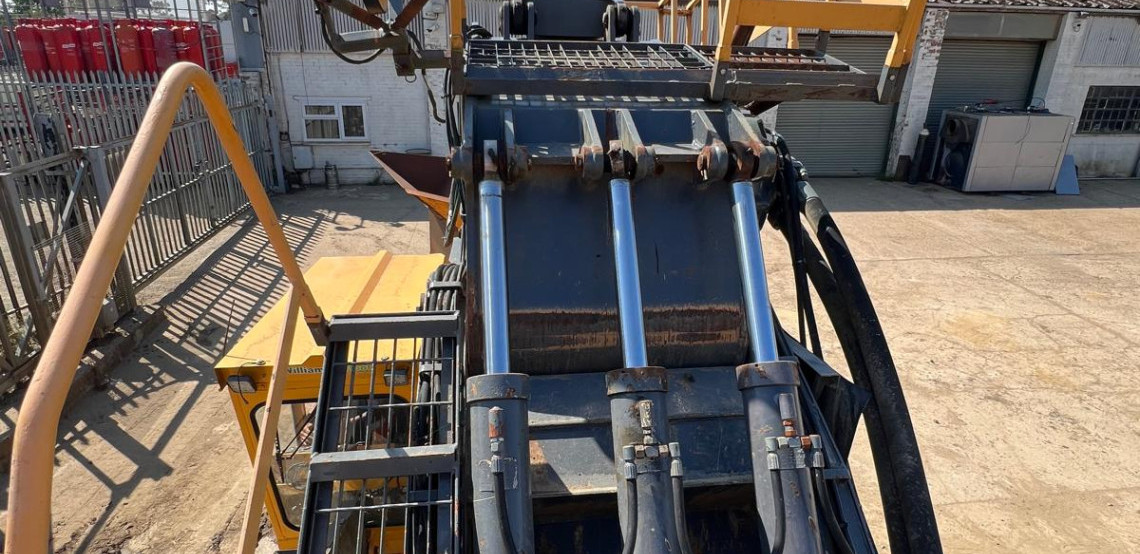

Gravel hopper -	Hydraulic depth adjustable to fit all pipe boxes

Pipe reel:
Pipe reel type -	Top mounted swivelling pipe reels (cow horn style)

Engine:
Make -	Cummins
Type -	QSM11
Power -	335hp (250kw)
Emission certified -	EU stage 3A

Track assemblies:
Track type -	Equivalent to D4
Track pad -	Triple grouser 600mm width

Operators cabin:
Model type -	Rear mounted with heating
Movement -	Hydraulic rise and fall

Machine control:
Laser -	Factory fitted wiring kit for Trimble system to lift and grade cylinders.
Extras -	Trimble GPS for depth control

Dimensions and weight (approx. for transportation):
Weight -	20.5 tonne
Length -	11.8m (with pipebox)
Width-	2.65m over tracks - 2.95m overall machine width, digging unit is slewable for transport to reduce overall width
Height-	3.20m
