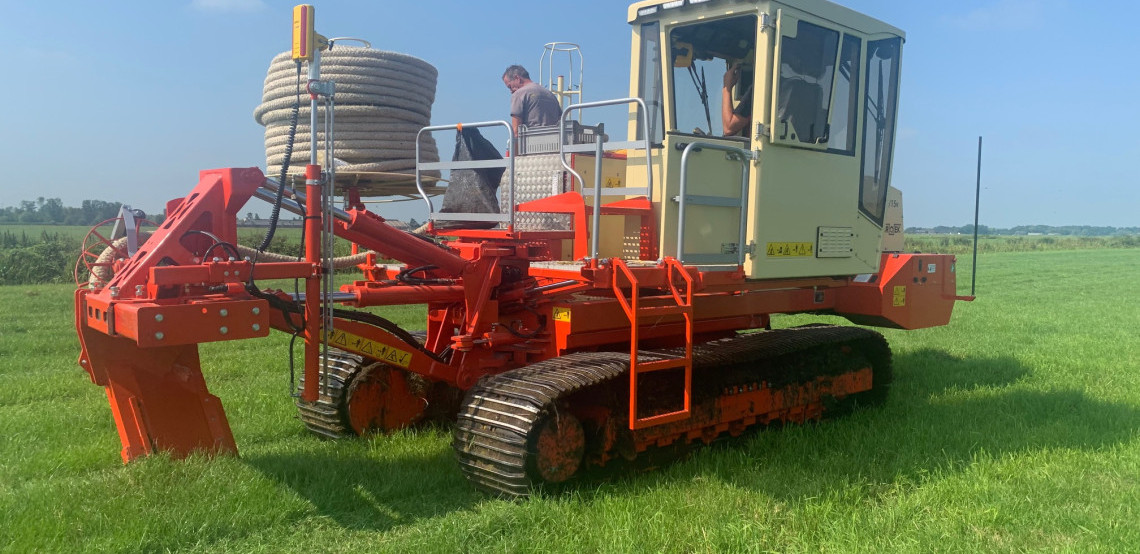

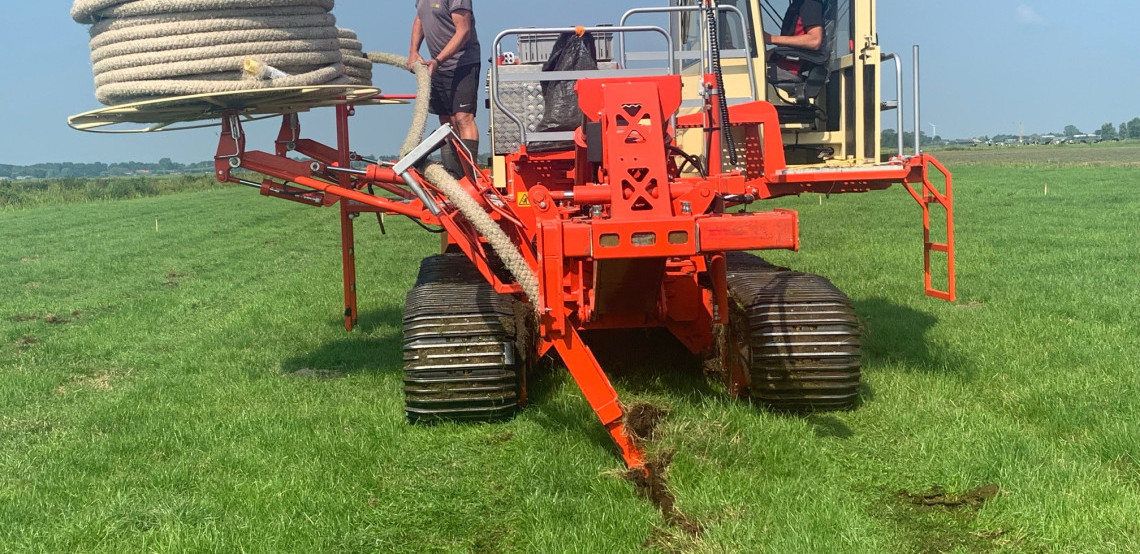

Drainage Plows
25/20 straight & V
Overview
Ideal for most lateral drainage schemes to depths of 1.8 metres, this compact machine is convenient and cost-effective to transport and operate within smaller European fields, but still capable of installing thousands of metres of on grade pipe every day
Machine features
| 25/20V | 25/20 | |
|---|---|---|
| Trench method | V blade | Straight blade |
| Grade control | Trimble precision laser or GPS, with manual override | |
| Trench depth range | 0m - 1.8m | |
| Max pipe diameter | 165mm | |
| Pivoting trenching unit | 5° from centre to both sides | |
| Pipe handling | Manual or hydraulic pipe reels | |
| Power unit | Cummins 250kw (335hp) powering main and auxiliary pumps | |
| Undercarriage | Heavy duty oscillating D5B - (optional side tilt) | |
| Track pad | 860mm Triple grouser | |
| Track drive | Independent hydrostatic, high & low speed drive 0 - 5000m/hr | |
| Operators position | Ergonomic cabin with heating. ROPS certified | |
| Transport dimensions | (L) 10.1m - (W) 2.9m - (H) 3.1m | (L) 10.0m - (W) 2.9m - (H) 3.4m |
| Weight | 26 tonne (Approx) | 28 tonne (Approx) |
