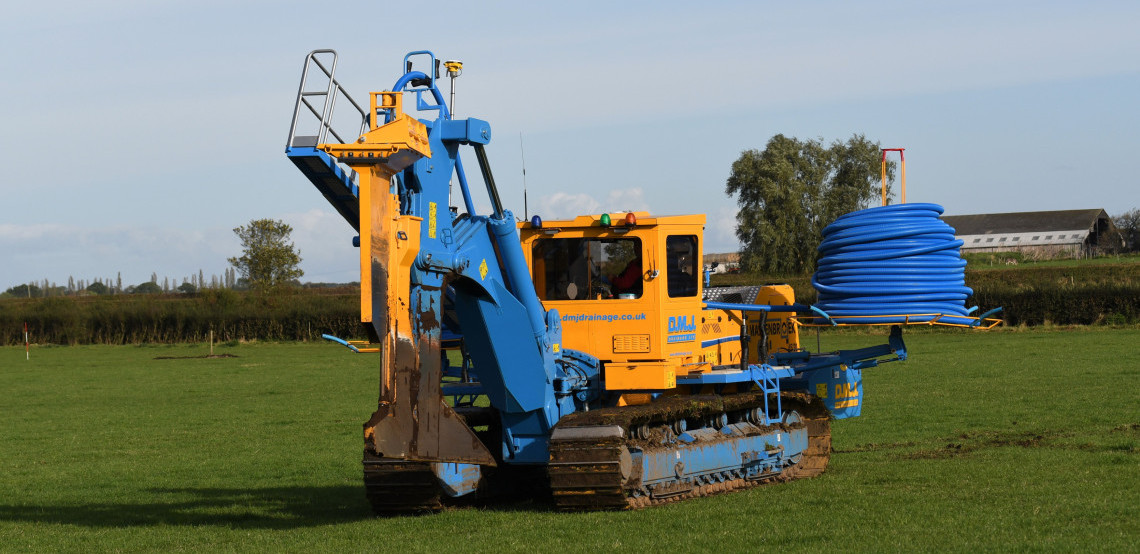

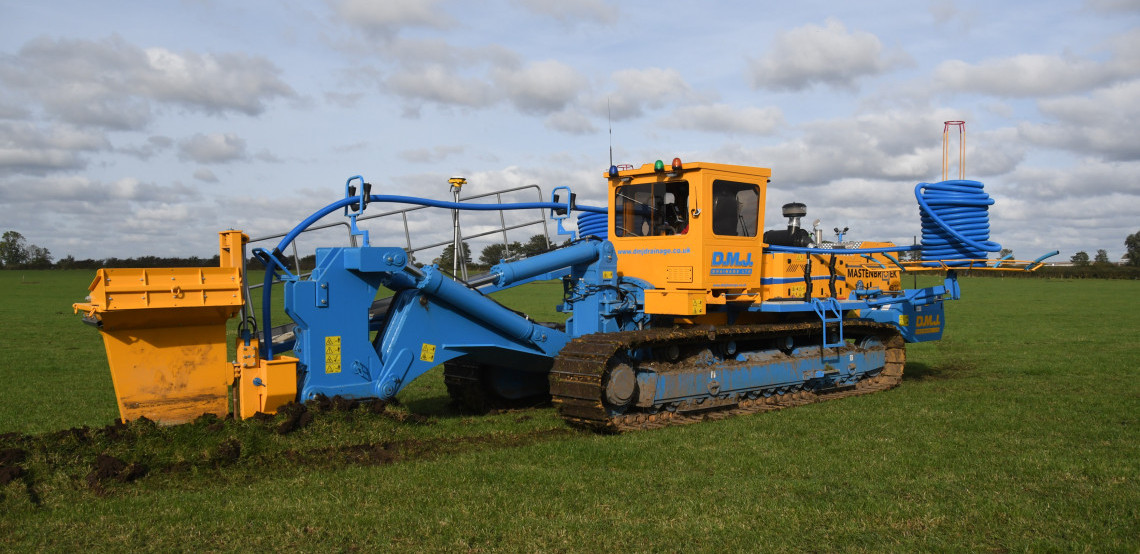

40/20 straight & V

Featuring the compact design simular to the 25/20, the 40/20 offers the added benefit of increased engine power for installing larger diameter pipes to depths of 1.8 metres

Machine features

	40/20V	40/20

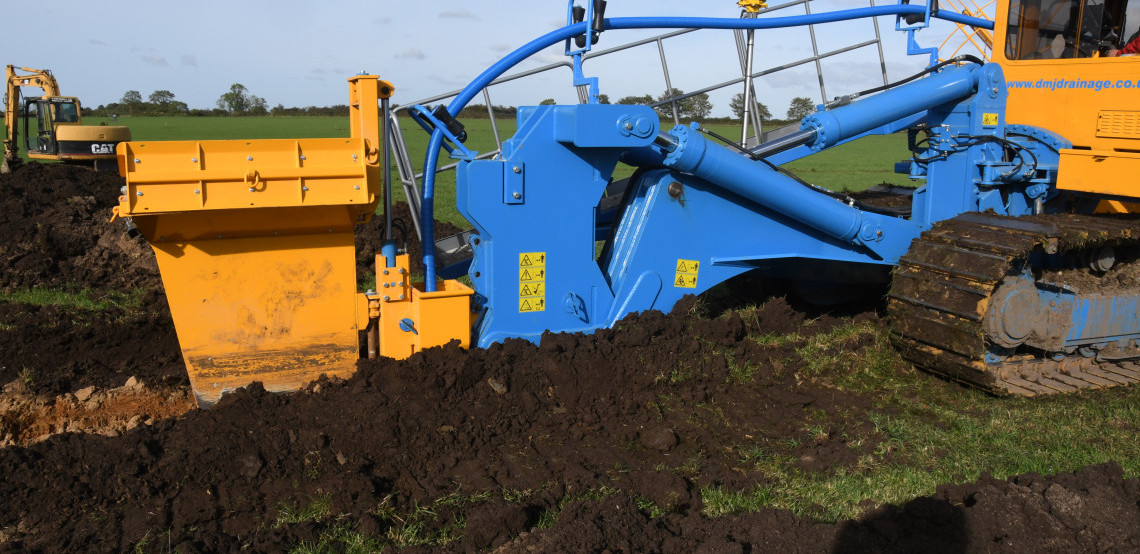

Trench method -	V blade	Straight blade
Grade control -	Trimble precision laser or GPS, with manual override
Trench depth range -	0m - 1.8m
Max pipe diameter-	200mm
Pivoting plow unit -	12° from verticle to both sides
Plow unit slew	7.5° from centre to both sides
Pipe handling -	Manual or hydraulic pipe reels
Power unit -	Volvo 315kw (428hp) powering main and auxiliary pumps
Undercarriage -	Heavy duty oscillating D5B
Track pad -	800mm Triple grouser
Track drive -	Independent hydrostatic, high & low speed drive 0 - 6000m/hr
Operators position -	Ergonomic cabin with heating. ROPS certified
Transport dimensions -	(L) 11m - (W) 2.98m - (H) 3.1m	(L) 11.1m - (W) 2.98m - (H) 3.49m
Weigth -	31 tonne (Approx)	31 tonne (Approx)
