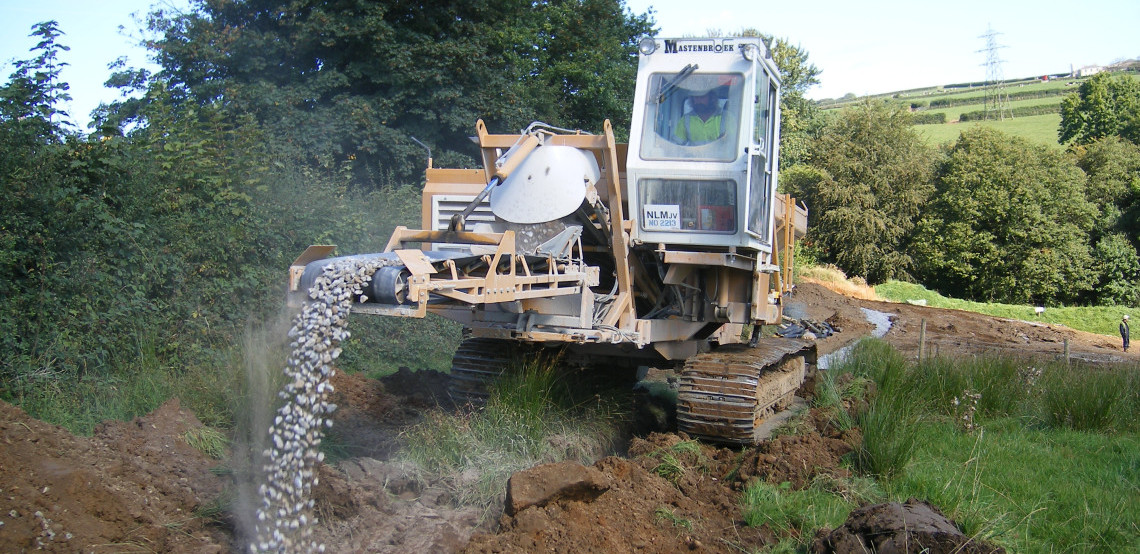

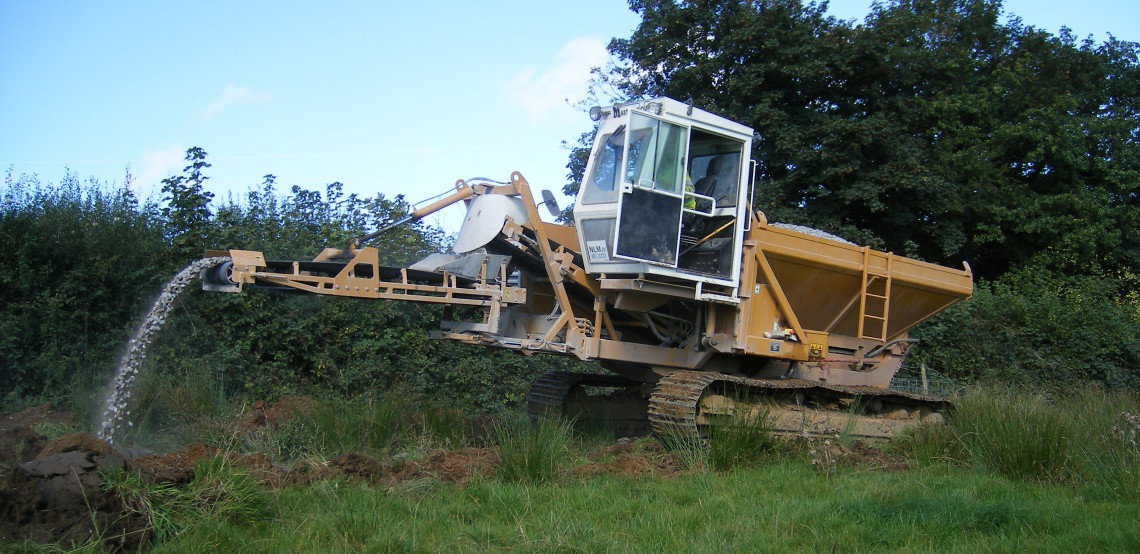

Mastenbroek CT12 Gravel cart

Machine Type -

CT/12

Year of manufacture -

2007

Registered hours -

3,800 approx

  Hopper:

Hopper capacity -

Up to 15,000kg approx.

Hopper discharge -

1. Hopper conveyor discharge on to a centrally mounted forward conveyor and front swing conveyor.
2. Hopper tipping facility to the rear of machine.

  Engine:

Make -

Cummins

Type -

QSB 6.7

Power -

220hp (164kw)

Emission certified -

EU stage 3A

   Track assemblies:

Track type -

Equivalent to D4

Track pad -

Triple grouser 700mm width - winged

   Operators cabin:

Model type -

Front mounted with heating

Movement -

Hydraulic rise and fall

  Dimensions and weight (approx. for transportation):

Weight -

17.0 tonne

Length -

9.55m (with swing conveyor)

Width-

2.95m over tracks

Height-

2.95m
